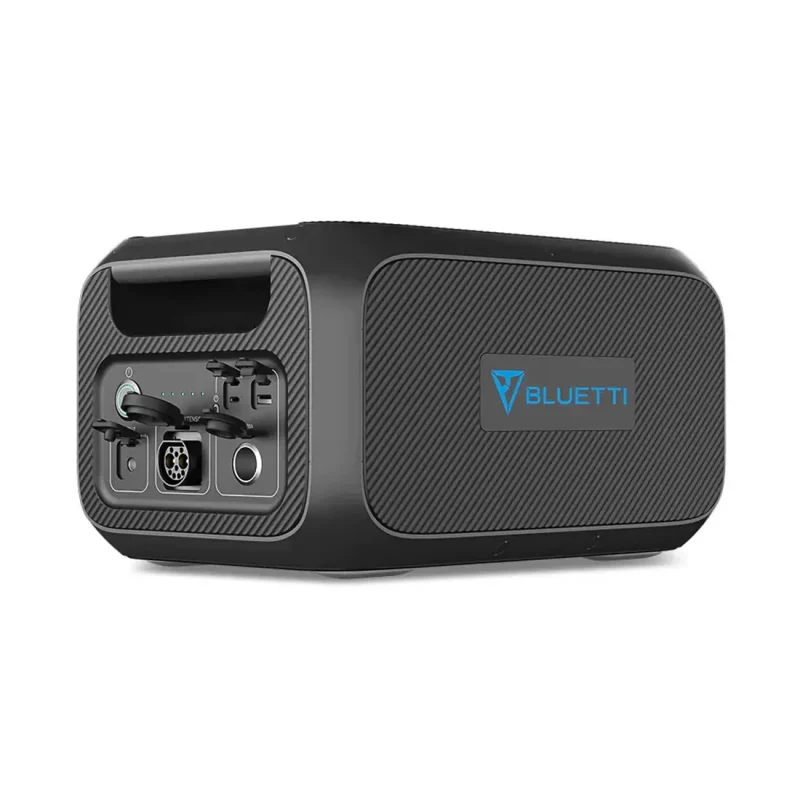

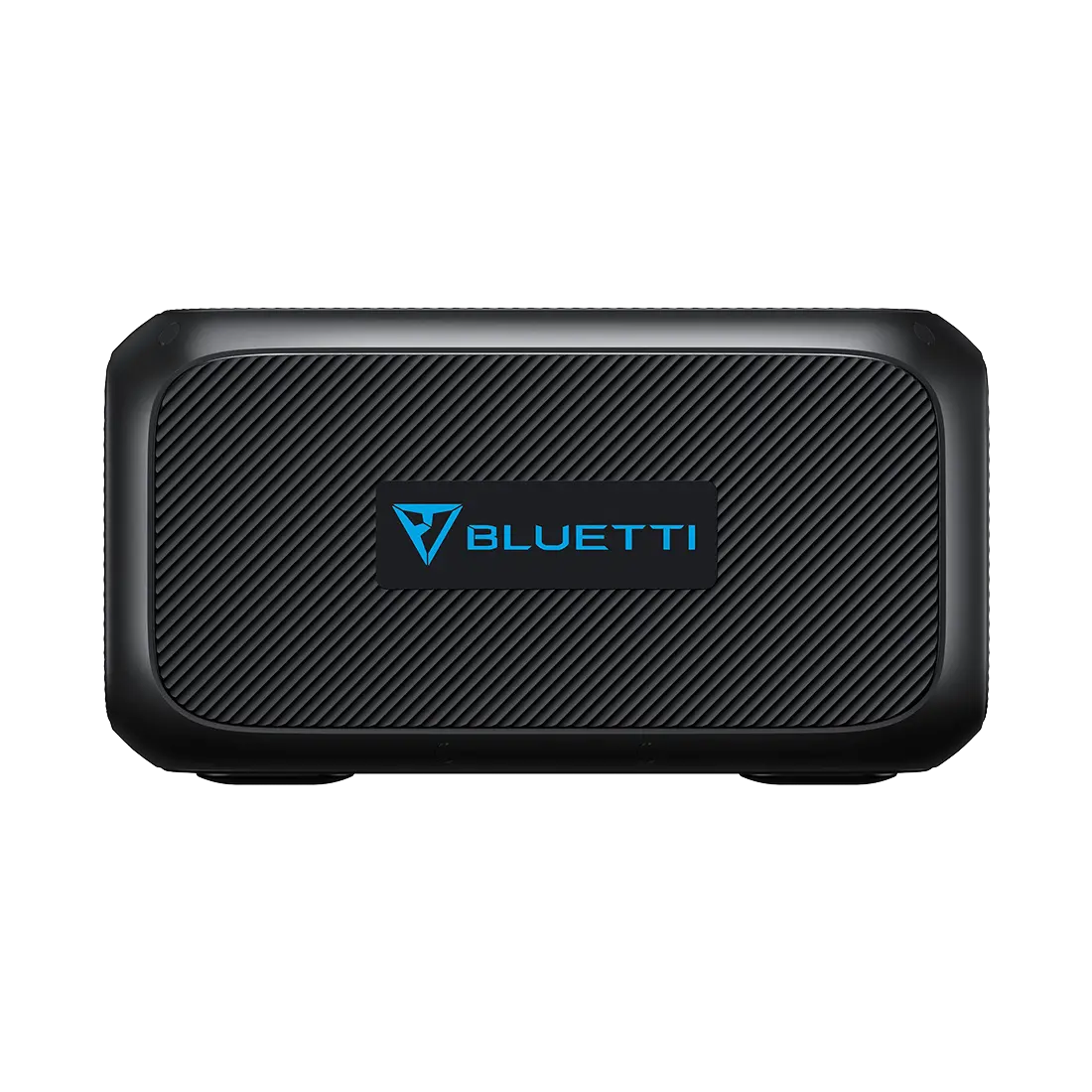

BLUETTI B230

Features. Technical characteristics FAQ Never running out of energy The BLUETTI B230 meets your normal electricity needs with 2048Wh of power and supports solar, AC, car […]

Original price was: 1.599,00 €.Current price is: 1.399,00 €.
Weight 21,8 kg
Dimensions 42 × 28 × 22,7 cm
Categories: , SKU: B230
Never running out of energy

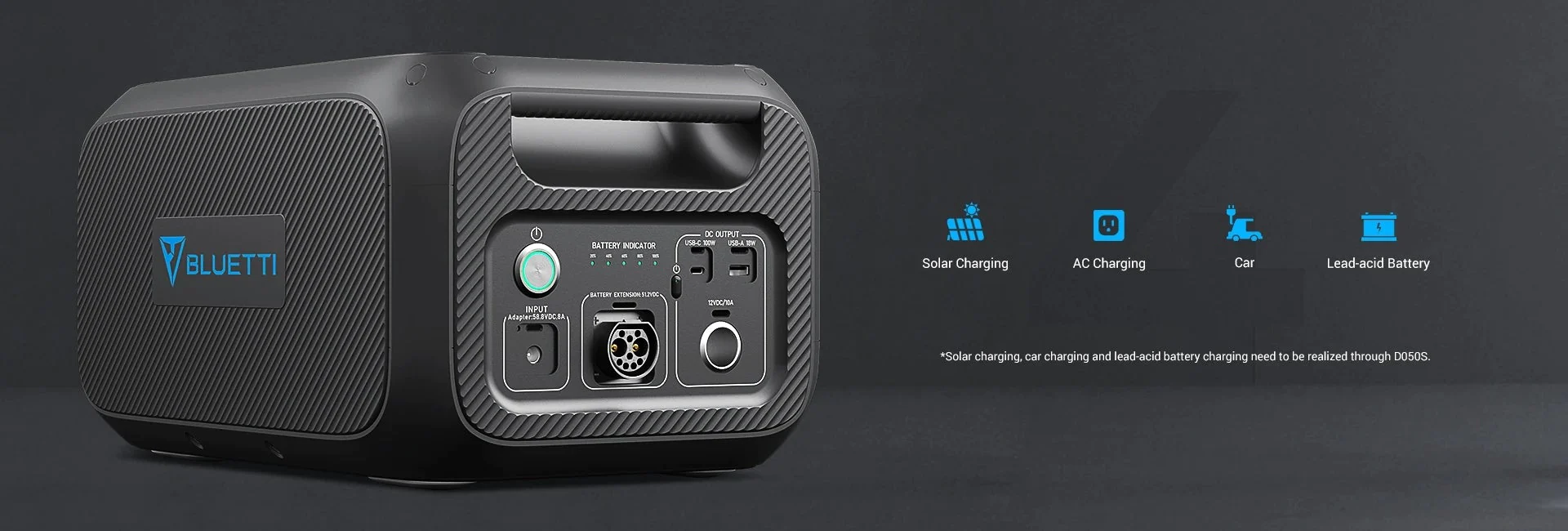

The BLUETTI B230 meets your normal electricity needs with 2048Wh of power and supports solar, AC, car and lead-acid battery charging to get power whenever and wherever you need it. *D050S is required to charge the vehicle and lead-acid battery.

BLUETTI B230
Universal power supply

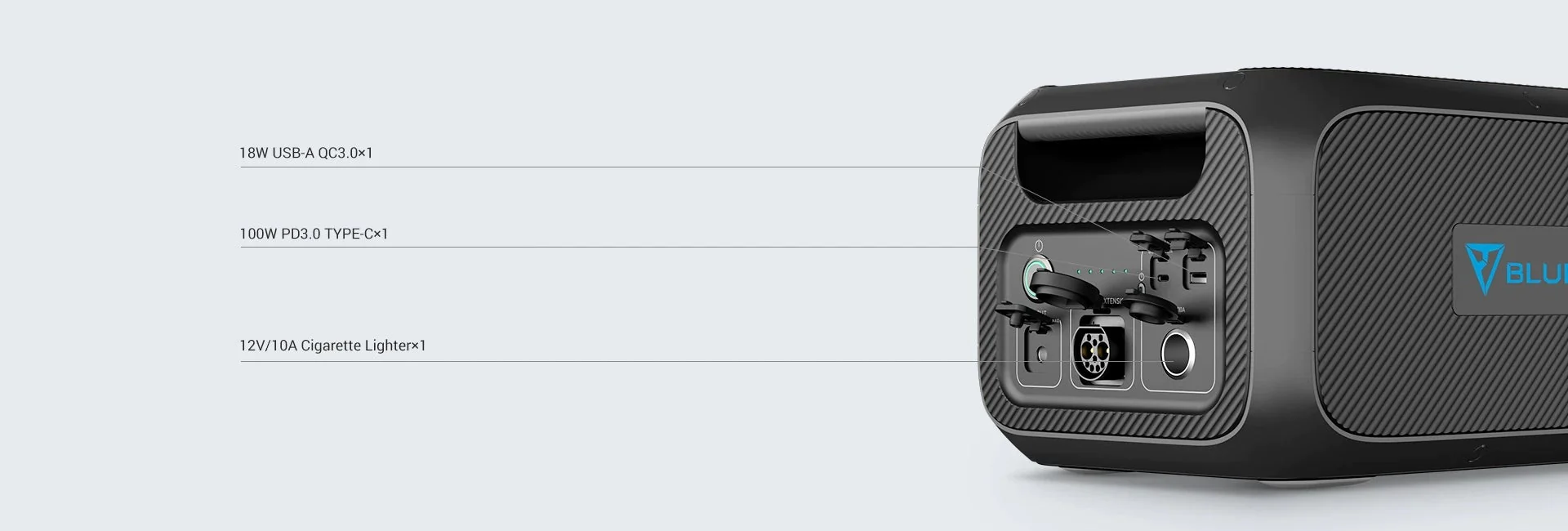

The 100W USB-C output ports, 12V/10A cigarette lighter, and 18W USB-A output are designed to charge essentials such as smartphones, laptops, cameras, fans, lighting, and more.
BLUETTI B230
Extend the life of your devices

The B230 has more than 3500 life cycles with top-notch LFP cells, providing up to 80% of the original capacity. What’s more, it’s additionally compatible with the BLUETTI AC200MAX for a huge amount of power.

BLUETTI B230
Home Backup and Travel Power Bank

The AC200MAX+B230 is portable and safe to use. Simply place them in your home or in your trunk, and they will serve as a backup power source for your home and camping trip with a great set of functions.

BLUETTI B230
BATTERY INFORMATION
  • Capacity: 2048 Вт-год (51,2 В, 40 А-год)
  • Type: LiFePO4 (літій-залізофосфат)
  • Life cycles: 3500+ циклів до 80% вихідної ємності
  • Expiration date: Поповнюйте до 80% кожні 3-6 місяців
  • Management system: Контролер MPPT, BMS тощо.
EXIT
  • USB-C port: 1 x 100 Вт Макс.
  • USB-A port: 1 x 18 Вт USB-A
  • 12 V DC sockets: 1 x 12VDC (автомобільна розетка)
ENTRY
  • AC adapter input: 500 Вт макс.
  • Sunny entrance: Макс. 500 Вт, VOC 12-60 В постійного струму, 10 A (через BLUETTI D050S)
  • Car entrance: 12/24 В від порту прикурювача (через BLUETTI D050S)
  • Lead-acid battery: 12/24 В від порту прикурювача (через BLUETTI D050S)
  • Max. entrance: 500 Вт
RECHARGING TIME
  • AC adapter (500 W): ≈6,5~7 годин
  • Solar (200 W): ≈15,5~16 годин (з яскравим сонячним світлом, ідеальною орієнтацією та низькою температурою)
  • Car socket 12 V/24 V (100 W/200 W): ≈10 або 20 годин
GENERAL
  • Compatibility: AC200Max (оригінальне розширення), AC200P/EB150/EB240 (з’єднання DC-DC через D050S)
  • Through charging: Так
  • Weight: 21,8 кг

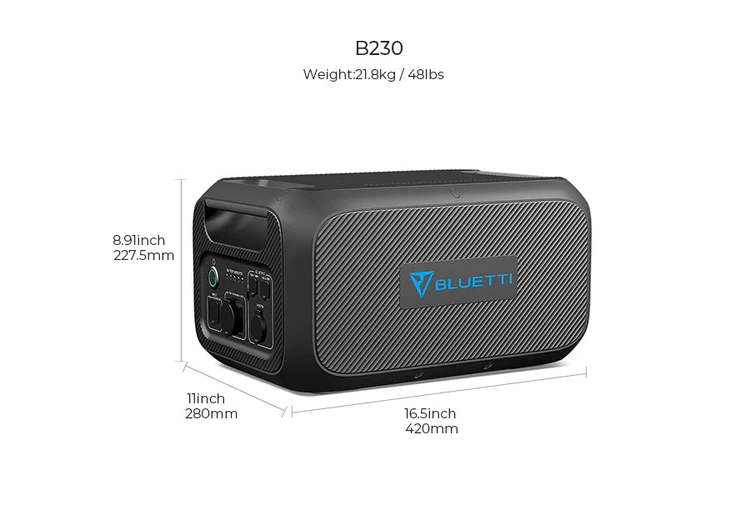

  • Dimensions (L x W x D): 42 x 28 x 22,75 см
  • Operating temperature: 0-40°C
  • Storage temperature: -20-40 ℃
  • Certificates: UL, CEC, DOE, FCC, CA Prop 65
  • Warranty: 2+2 роки
BLUETTI B230 | 2048WH EXPANSION BATTERY MANUAL

FAQ

1Can I use the B230 battery modules separately?

Yes. The B230 has USB-C, USB-A, and 100W 12V DC output ports and a battery module that can operate flawlessly in standalone mode.

2How many B230 battery modules can be connected to the AC200Max?

Up to 2 B230 battery modules can be connected to the AC200Max.

3How many B230 battery modules can be connected to the AC300?

The AC300 can only be connected to the B300 battery module.

4How many B230 battery modules can be connected to the AC200/P?

Up to two B230s. One through the solar input port using the converter cable and the other through the AC adapter input.

5What are the charging methods for BLUETTI B230?

The B230 can be charged using:
1)500W AC adapter (sold separately)
2) Car cigarette lighter or solar panel output (requires BLUETTI D050S - DC charging amplifier, sold separately).
Note. The battery module has only one input port, so it cannot be charged using multiple methods at the same time.
