BLUETTI PV200

Plug it in and leave it. BLUETTI’s 200W solar panel is configured to keep your solar generators powered as long as sunlight is available.

Original price was: 499,00 €.Current price is: 449,00 €.
Weight 7,3 kg
Dimensions 59 × 60 cm
Categories: , SKU: PV200
Solar charging anywhere
Plug it in and leave it. BLUETTI’s 200W solar panel is configured to keep your solar generators powered as long as sunlight is available.
BLUETTI PV200
23.4% High efficiency
Built on monocrystalline solar cells, the PV120 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.
BLUETTI PV200
Easy setup with the help of the stand
Spread out the PV200, secure the stands, adjust the angle to maximize the amount of sunlight, and you’re ready to use solar energy for your generators.
(Charging time refers to 80% of the charged power level*)
BLUETTI EB55 (537 Wh) + PV200: charge in 3 hours
BLUETTI AC200P (2000 Wh) + 2*PV200: charge in 5.5 hours
BLUETTI AC200MAX (2048 Wh) + 4*PV200: charge as fast as possible after 3 hours
BLUETTI AC300 + B300 (3072 Wh) + 8*PV200: charge as fast as possible after 2.5 hours
BLUETTI EP500PRO (5100 Wh) + 6*PV200: charge in as little as 4.5 hours
BLUETTI PV200
Built to last

The ETFE coating and IP65 junction box are designed to withstand any scratches and water splashes, which is ideal for camping, fishing, hiking, etc. (Keep out of rain and do not soak in water)

BLUETTI PV200
Portable in every way
BLUETTI PV200
POWER
  • Model: PV200
  • Power: 200 Вт
  • Lamination: ETFE (етилентетрафторетилен)
  • Cell type: Монокристалічний кремній
  • Cell efficiency: До 23,4%
  • Voltage at maximum power (Vmp): 20,5 В
  • Current at maximum power (Imp): 9,7А
  • Open circuit voltage (OCV): 26,1 В
  • Short circuit current (Isc): 10.3A
GENERAL
  • Connector: Стандартний роз'єм MC4
  • Weight: 7,3 кг

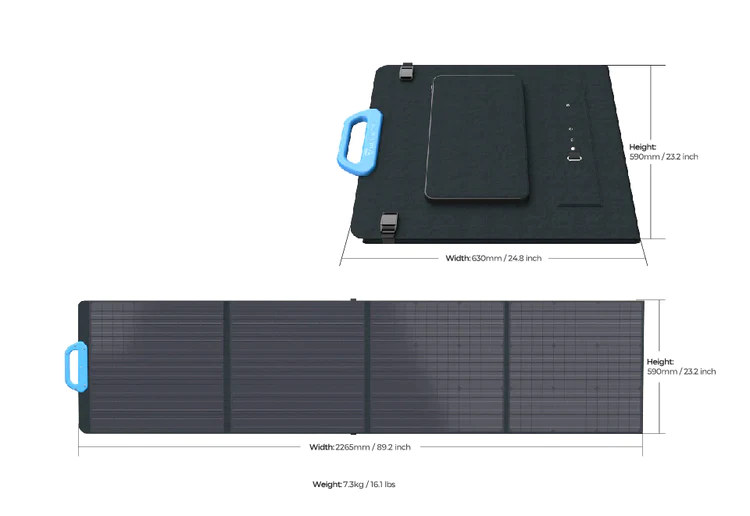

  • Dimensions (unfolded): 59 × 226,5 см

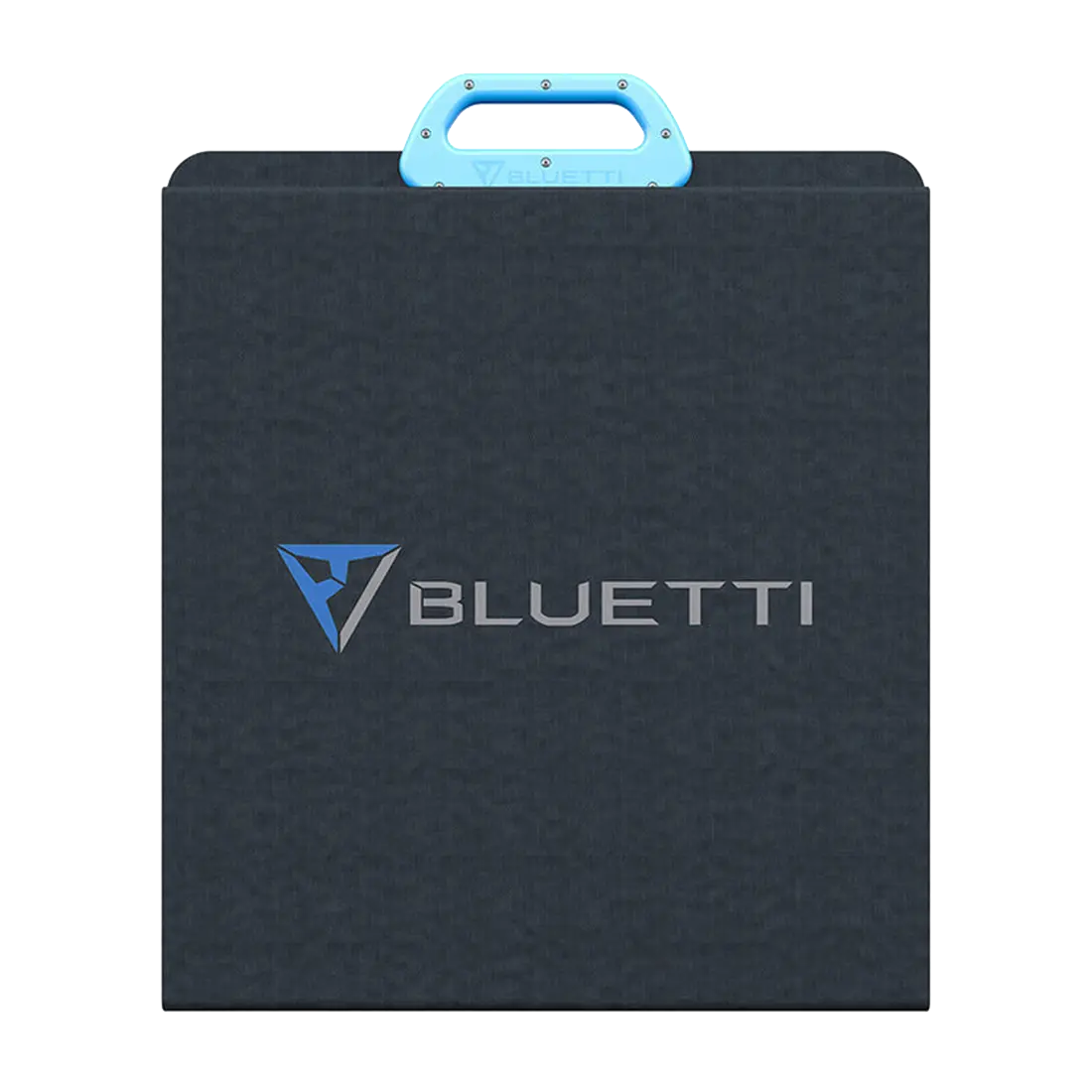

  • Size (folded): 59 × 60 см
  • Operating temperature: -10-65 ℃
  • The best operating temperature: 25℃
  • Cable length: 3 м
  • Certificates: FCC, CE, ROHS
  • Warranty: 12 місяців
SOLAR PANEL BLUETTI PV200 | 200W MANUAL

FAQ

1Is it waterproof?

Yes. IP65 rating for the junction box. Do not expose the solar panel to rain or snow.

2Can I install it on the roof?

No.

3What is the difference between PV200 and SP200?

Under the same conditions, BLUETTI PV solar panels produce more energy due to limited sunlight.*
* Conclusion of the BLUETTI laboratory, for reference only.

4Compatible with BLUETTI PV200.

Most of the solar power plants on the market, and one PV200 solar panel is ideal for BLUETTI EB55/EB70S/AC50S portable power plants.

5Can I use a BLUETTI solar panel to charge a third-party power plant?

Yes, if they
(1) have MC4 connectors;
(2) maintain the output characteristics of BLUETTI solar panels.

6How to choose solar panels for your solar generator?

Read about the photovoltaic power requirements of a solar generator.
View the output characteristics of solar panels.
Calculate the total voltage, current, and power of the solar panels.
Let's take a look at the input connectors for solar panels.

7Can I use solar panels of different sizes?

No. Your solar panels must be of the same type and rated power of the same brand. For example, two PV200s for charging the BLUETTI AC200P are acceptable, but one PV200 + one SP200 is not.

8Are there any USB ports on the panel that I can directly connect to?

No. BLUETTI PV200 has only MC4 connectors.

9How to maximize the efficiency of solar panels?

These steps will help you get the most out of your solar panels:
1. Set up the panels correctly: The orientation and angle of the panels must be correct.
2. Avoid shady areas: any amount of shade will affect the production of solar panels.
3. Keep the panels clean: dirt or debris reduces the efficiency of the panel.
4. Do not heat the panels too much: good air circulation or a cool atmosphere around the panels will help.

10Is the solar charge controller in MPPT or PWM mode?

MPPT.
