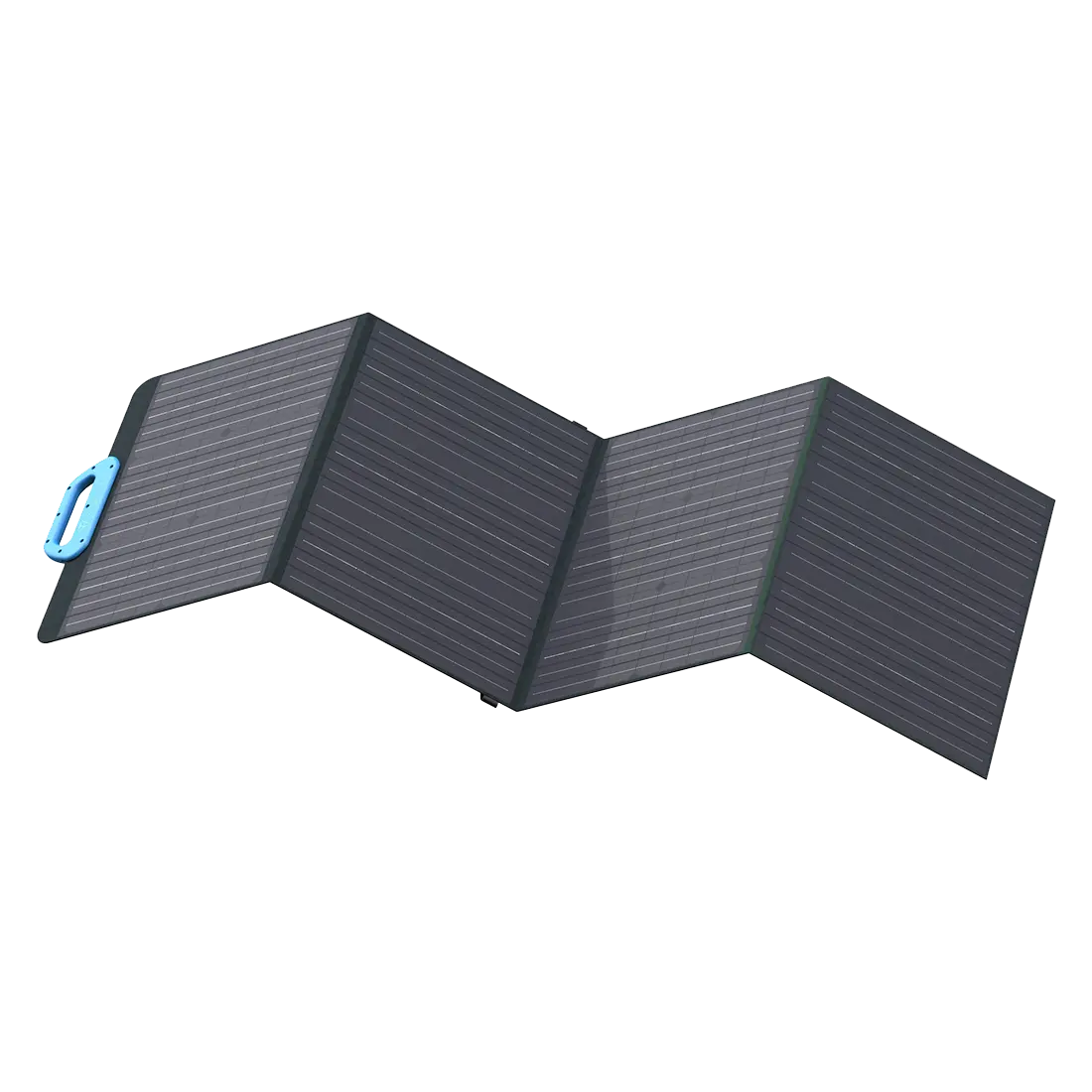

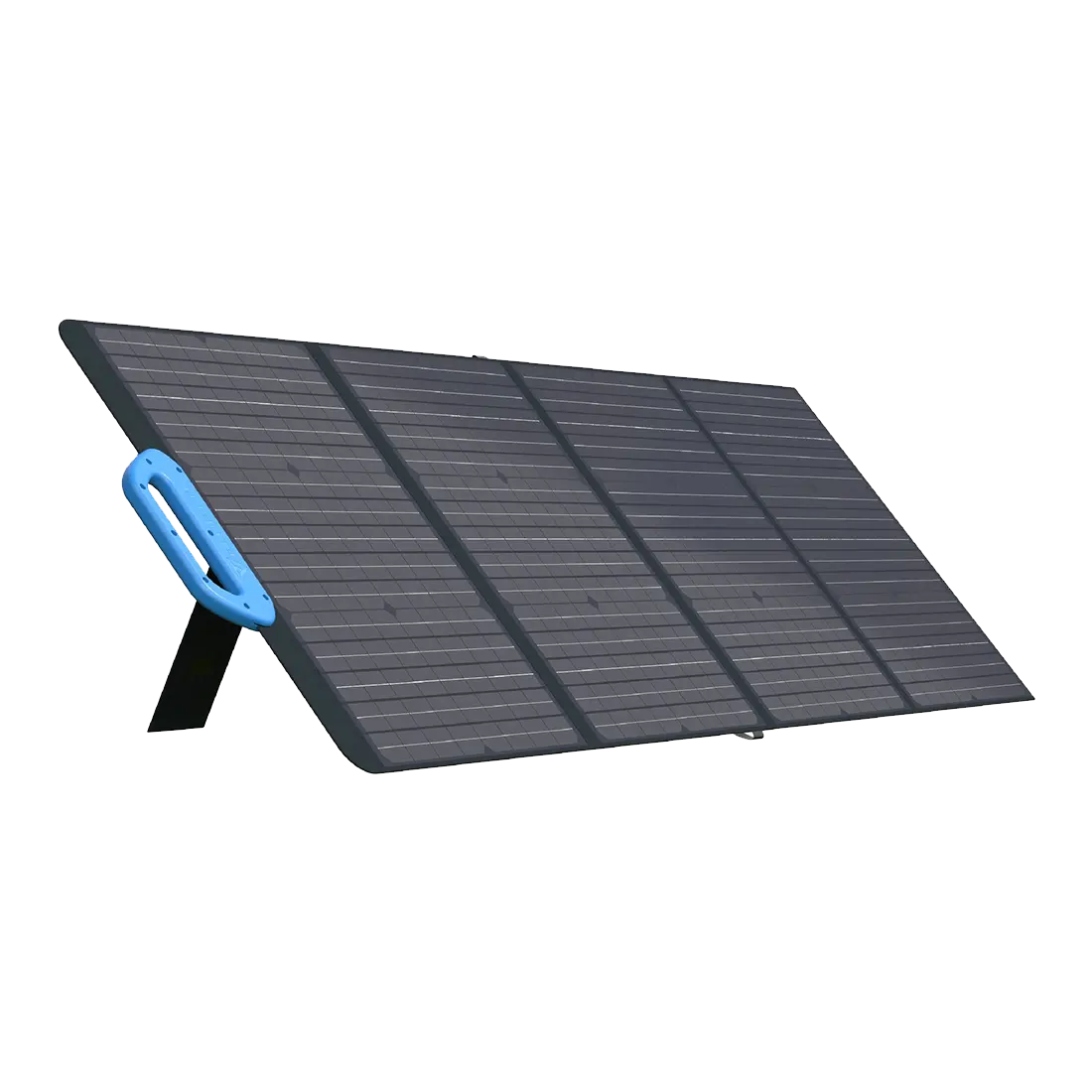

BLUETTI PV120
Plug it in and leave it. The BLUETTI 120W solar panel is configured to keep your solar generators powered as long as there is sunlight.
| Weight | 5,7 kg |
|---|---|
| Dimensions | 53,3 × 47 cm |
(Charging time refers to 80% of the charged power level*)
BLUETTI EB55 (537 Wh) + PV120: charge in 5 hours
BLUETTI AC200P (2000 Wh) + 2*PV120: charge in 8.5 hours
BLUETTI AC200MAX (2048 Wh) + 4*PV120: charge in 4.5 hours
BLUETTI AC300 + B300 (3072 Wh) + 8*PV120: charge in 3.5 hours
BLUETTI EP500 (5120Wh) + 6*PV120: charge in as little as 7.5 hours
The ETFE coating and IP65 junction box are designed to withstand any scratches and water splashes, which is ideal for camping, fishing, hiking, etc. (Keep out of rain and do not soak in water)
- Monocrystalline solar cells with an efficiency of up to 23.4%.
- Long-term ETFE coverage
- Foldable and portable
- Compatible with most solar generators with MC4 connectors
- Warranty 12 months
- Model: PV120
- Power: 120 Вт
- Lamination: ETFE (етилентетрафторетилен)
- Cell type: Монокристалічний кремній
- Cell efficiency: До 23,4%
- Voltage at maximum power (Vmp): 19,6 В
- Current at maximum power (Imp): 6.1A
- Open circuit voltage (OCV): 24,6 В
- Short circuit current (Isc): 6,43А
- Connector: Стандартний роз'єм MC4
- Weight: 5,7 кг

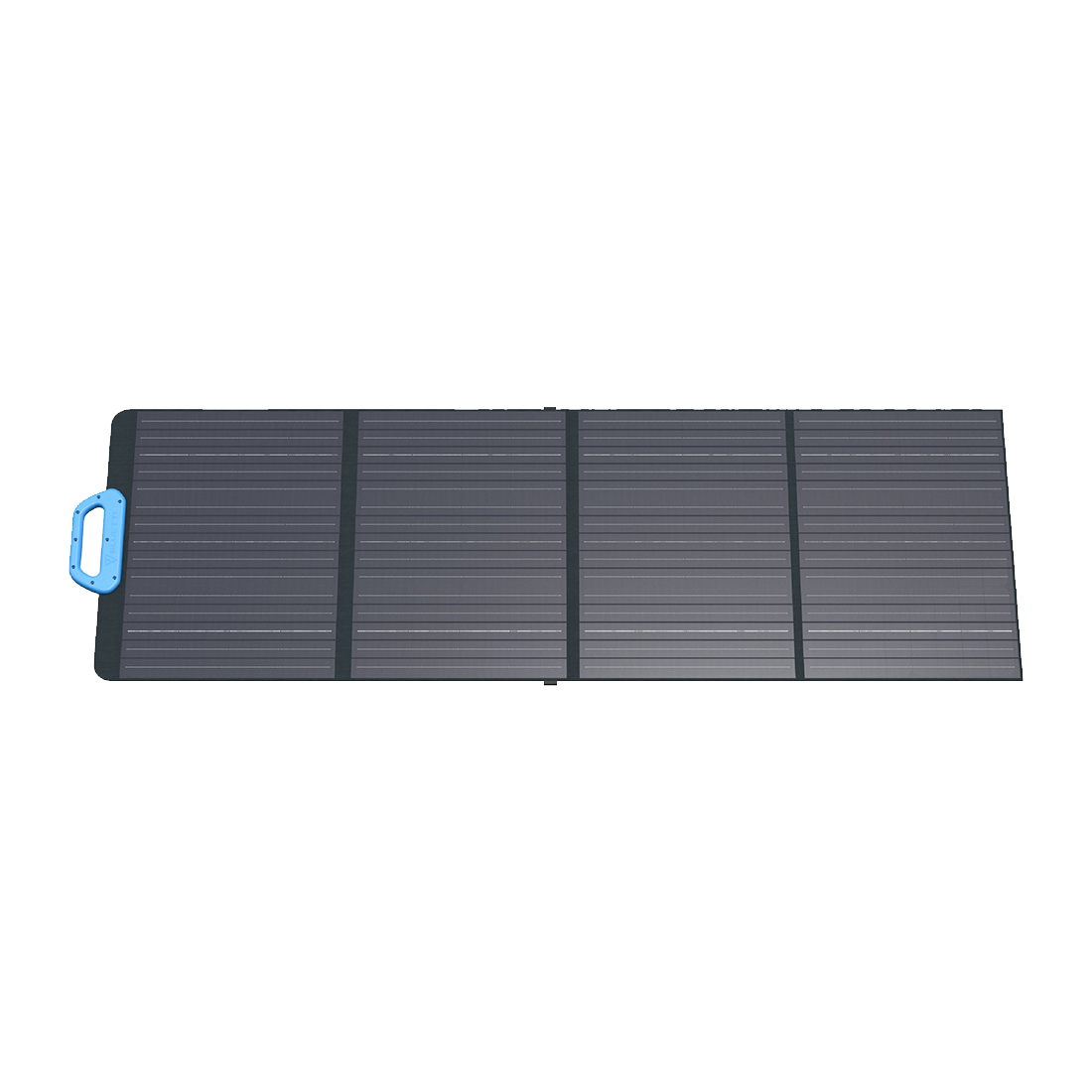

- Dimensions (unfolded): 53,3 × 165,2 см

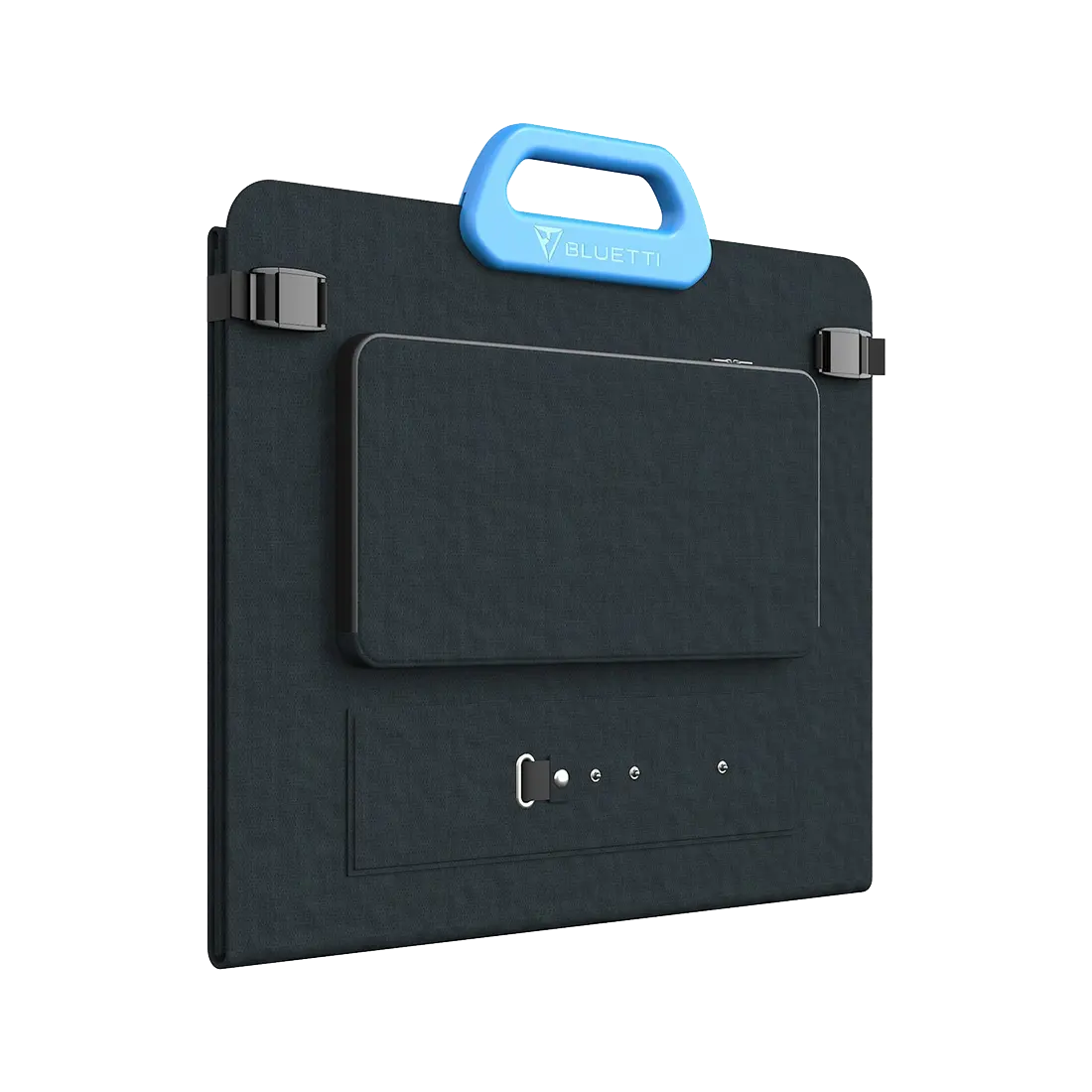

- Size (folded): 53,3 × 47 см
- Operating temperature: -10-65 ℃
- The best operating temperature: 25℃
- Cable length: 3 м
- Certificates: FCC, CE, ROHS
- Warranty: 12 місяців
FAQ
Yes. IP65 rating for the junction box. Do not expose the solar panel to rain or snow.
No.
Under the same conditions, BLUETTI PV solar panels produce more energy due to limited sunlight.*
* Conclusion of the BLUETTI laboratory, for reference only.
Most solar power plants on the market, and one PV120 solar panel is ideal for BLUETTI EB55/EB70/AC50S portable power plants.
Yes, if they
(1) have MC4 connectors;
(2) maintain the output characteristics of BLUETTI solar panels.
Read about the photovoltaic power requirements of a solar generator.
View the output characteristics of solar panels.
Calculate the total voltage, current, and power of the solar panels.
Let's take a look at the input connectors for solar panels.
No. Your solar panels must be of the same type and rated power of the same brand. For example, two PV200s for charging the BLUETTI AC200P are acceptable, but one PV200 + one SP200 is not.
No. BLUETTI PV120 has only MC4 connectors.
These steps will help you get the most out of your solar panels:
1. Set up the panels correctly: The orientation and angle of the panels must be correct.
2. Avoid shady areas: any amount of shade will affect the production of solar panels.
3. Keep the panels clean: dirt or debris reduces the efficiency of the panel.
4. Do not heat the panels too much: good air circulation or a cool atmosphere around the panels will help.
YES.
