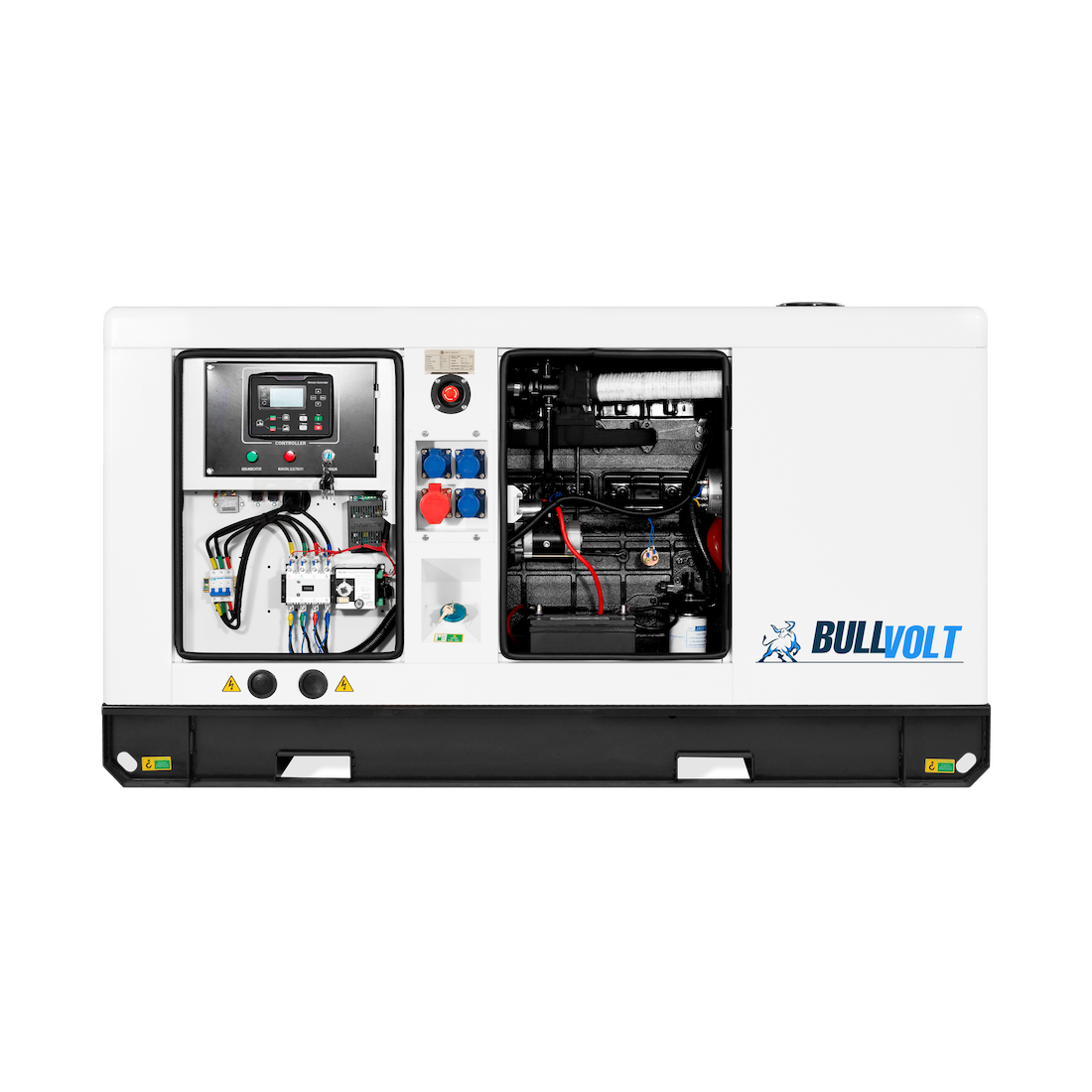

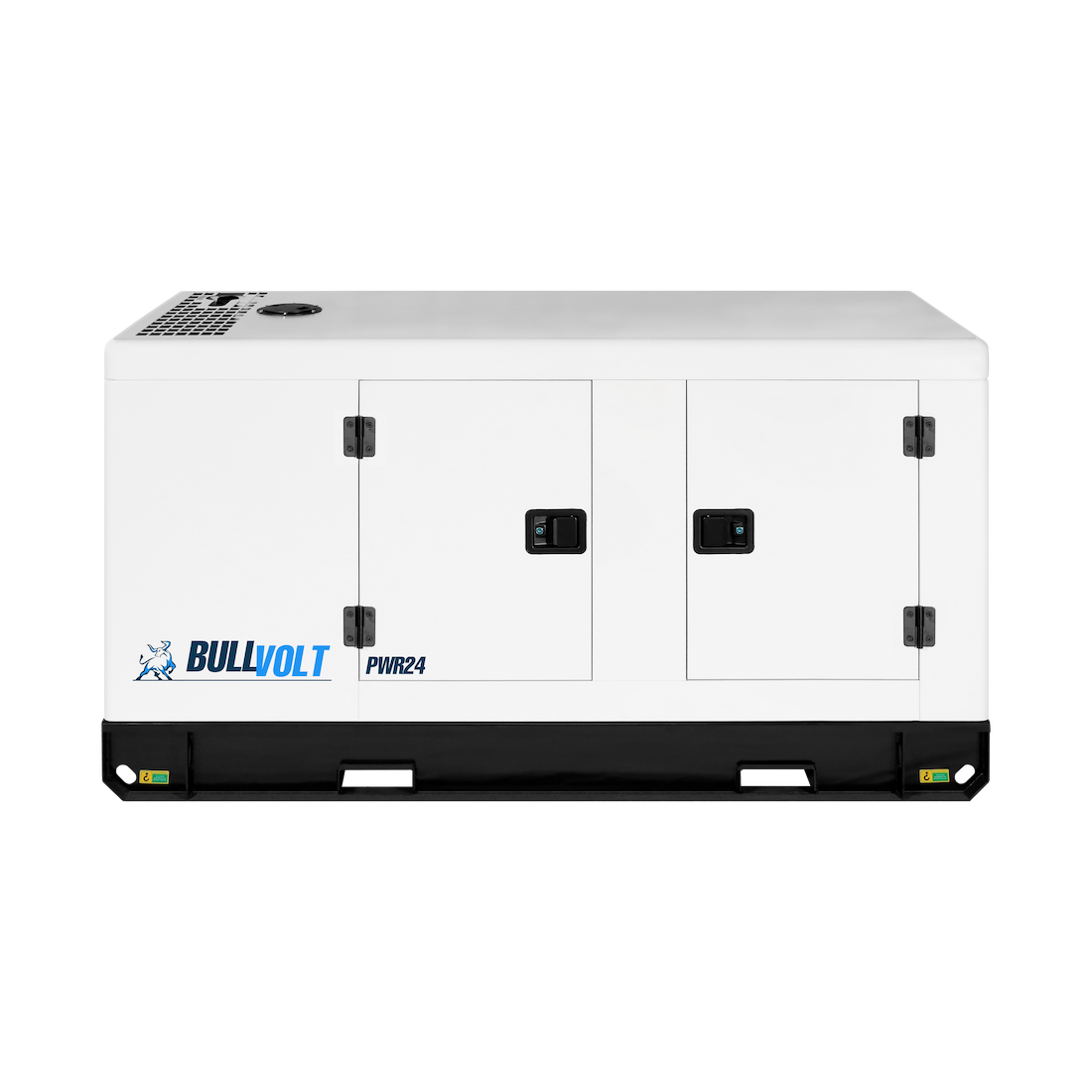

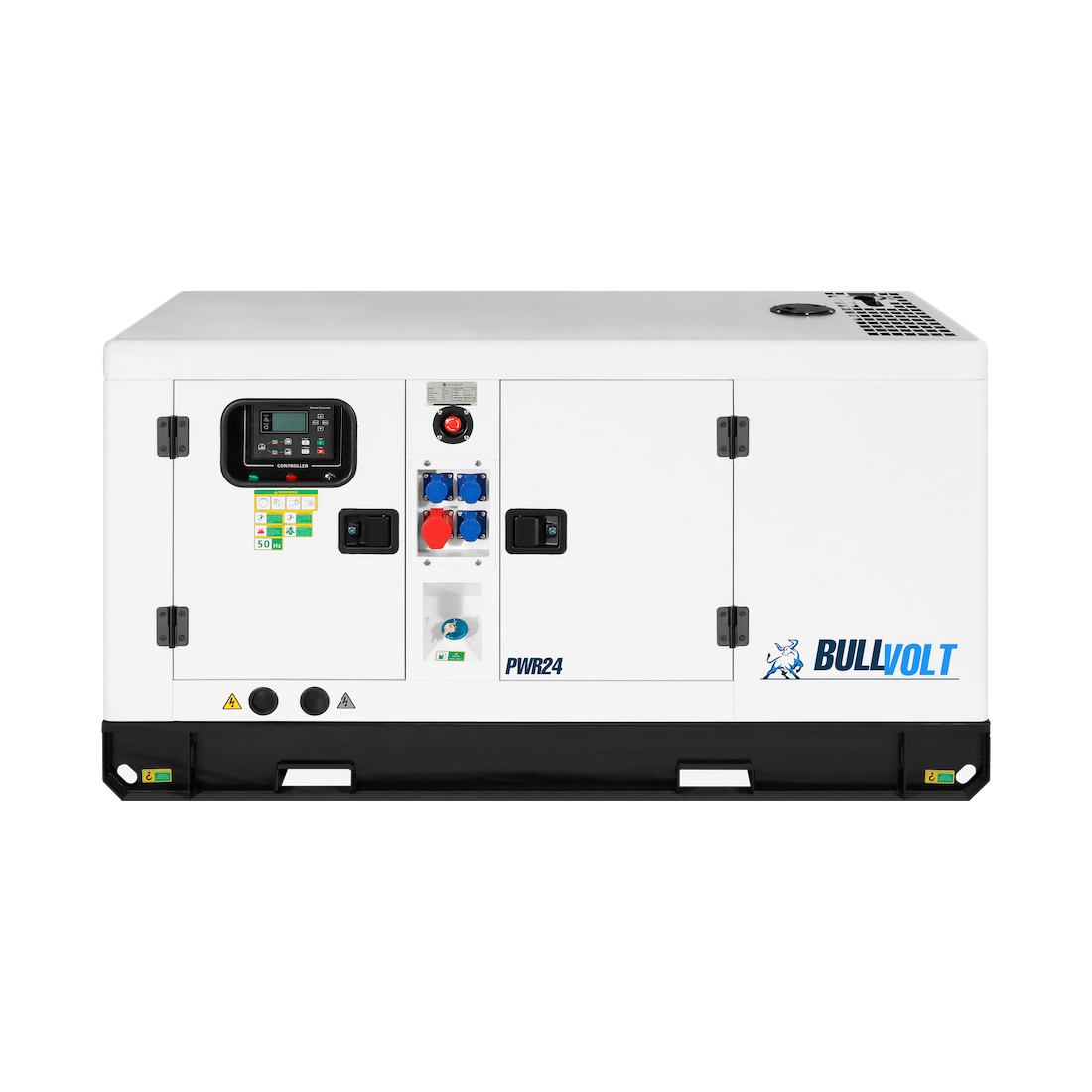

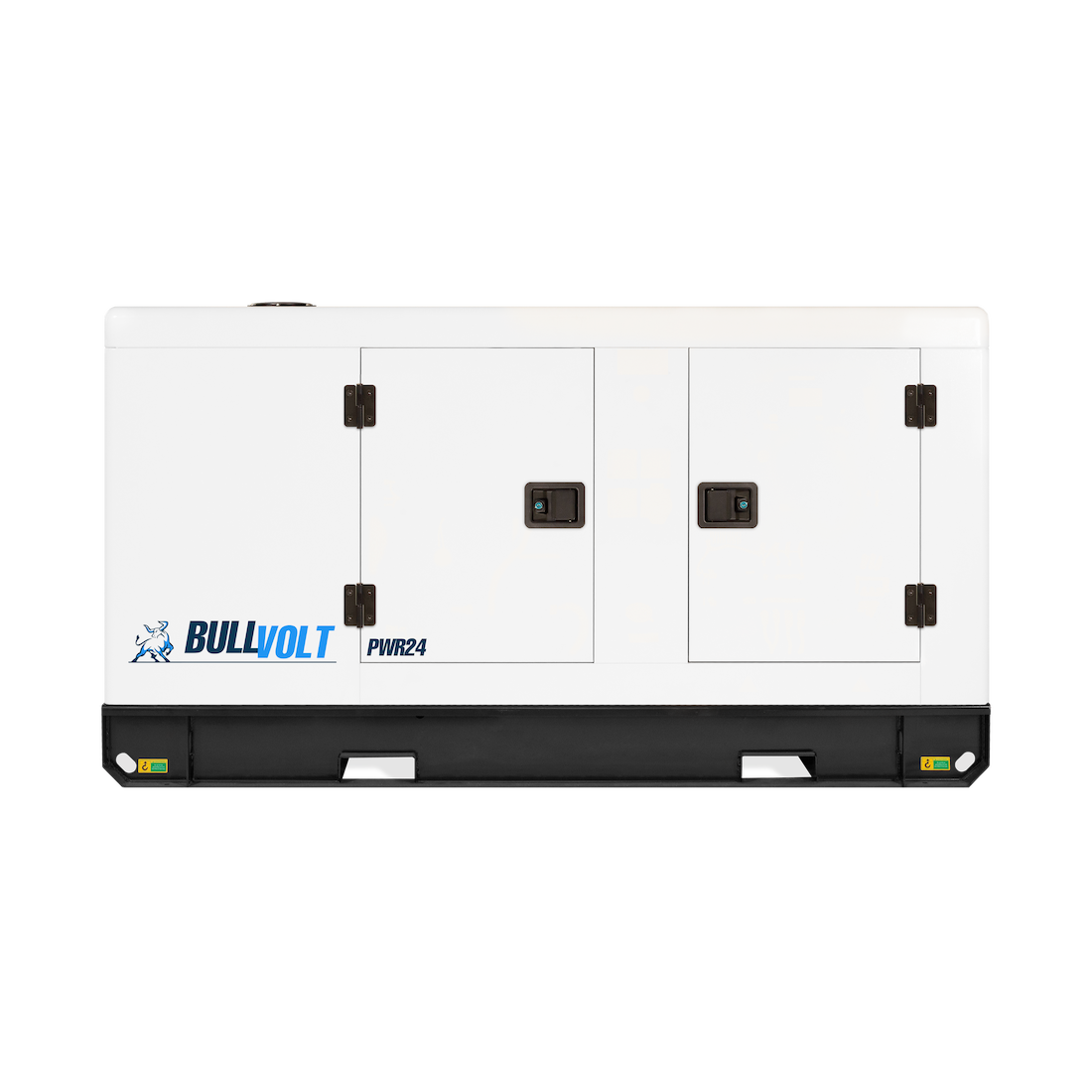

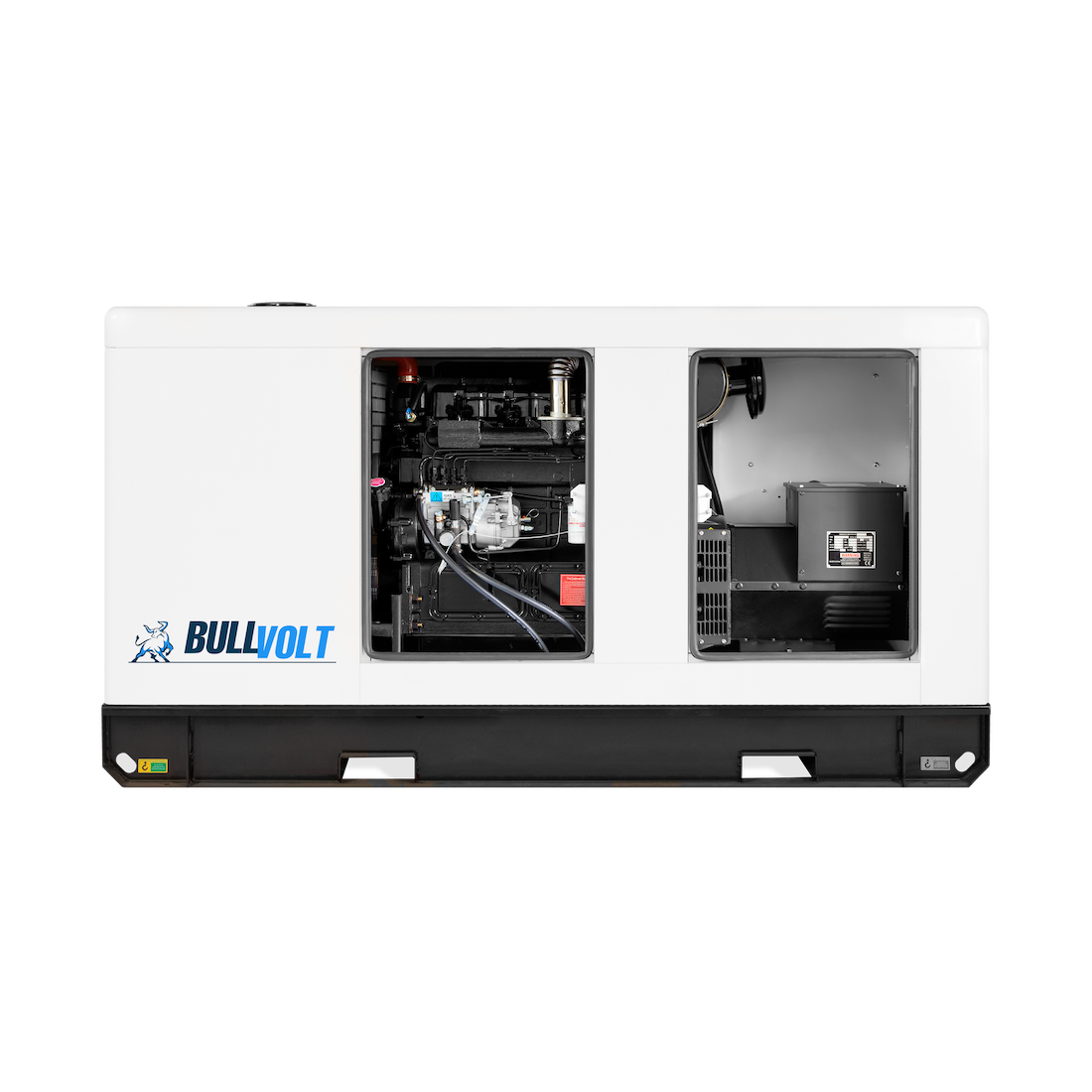

Bullvolt PWR24
Quiet water-cooled diesel generators Bullvolt PWR24
Weight | 900 kg |
---|---|
Dimensions | 200 × 85 × 115 cm |
Are you looking for a reliable and powerful diesel generator for various tasks? The Bullvolt PWR24 is the perfect solution for your power needs.
With a power output of 24 kW, the Bullvolt PWR24 provides a stable and reliable power supply in all conditions. Whether you need a backup power source for your home, business or construction site, this generator is ready to go.

With the Bullvolt PWR24 24 kW generator, you get the power to power all your production systems. Whether it is metalworking equipment, electrical machines or lighting systems, the Bullvolt PWR24 provides stable and reliable power even in the most demanding conditions.

The Bullvolt PWR24 works as a reliable backup power source, automatically switching on when the main power supply fails. This ensures uninterrupted work on the construction site and protects against temporary productivity losses due to the lack of electricity.

One of the main advantages of this generator is its reliability. The Bullvolt PWR24 is equipped with a robust diesel engine that ensures continuous operation for a long time. You can be sure that even in the most extreme conditions, this generator will operate reliably and stably. Independence from the external power grid will become your reliable companion thanks to Bullvolt PWR24

At first glance, it becomes clear that Bullvolt PWR24 is capable of providing stable power supply even in the most extreme conditions. This generator is a reliable and efficient source of energy that ensures your safety and comfort in any circumstances.

- New water-cooled diesel engine
- Brushless generators (class H, with AVR)
- Working conditions: 0℃~+45℃ (need freeze protection system if below 0℃)
- Basic fuel tank for 8-10 hours of continuous operation
- Digital control panel with automatic full protection
- MCCB air circuit breaker with safety protection
- Household silencer for quiet generator sets
- Humanized design, simple operation, easy maintenance
- All kits undergo comprehensive testing before delivery
- One-year warranty guarantees peace of mind
- EN ISO 12100:2010
- EN ISO 8528-13:2016
- EN 60204-1:2006/A1:2009/AC:2010
- EN 55012:2007/A1:2009
- Ventilation parts are designed on a modular basis
- Soundproofing and sound-absorbing foam padding
- All metal parts of the canopy are powder coated
- Panel with a window
- Emergency stop button
- Front and rear lockable doors
- Easy maintenance and operation
- Easy to lift and move
- External emergency stop button
- Steel chassis and anti-vibration pads
- The design of the base frame includes an integrated fuel tank
- The generator can be carefully lifted or pushed/pulled by the base frame
- The fuel level sensor transmits information to the controller
- Model: PWR-24KW
- Engine brand: Ricardo
- Engine model: K4100D / 30KW
- Generator: VG-184F / 24KW
- Digital control panel: AMF 6120
- Battery to start the generator: 24V / 60Ah
- Circuit breaker with indication: CHNIT MCCB 3P
- Fuel consumption at 100% load: 9 l / h
- Length: 200 cm
- Width: 85cm
- Height: 115 cm
- Net weight: 950 kg
- Fuel tank (l): 75.6 liters
- Power: (kVA) 30 kVA > 33 kVA
- Power: (kW) 24 kW > 26 kW
- Rated speed of rotation (rpm) 1500
- Rated output power 400V / 50HZ
- Rated power factor 0.8 if late
- Rated current 43А
- Model: Ricardo K4100D
- Engine type: Built-in pump, water cooling, 4-stroke, 4 cylinders
- Rated output power: 30 kW / 1500 rpm
- Max. RPM without load: ≤1575 rpm
- Idle speed: ≤500 rpm
- Piston stroke: 100*115 mm
- Compression ratio: 19:01
- Working volume: 3.6 liters
- Engine ignition procedure: 1-3-4-2
- The volume of oil: 14 liters
- Coolant volume: 5.8 liters
- Air intake system: with turbocharging
- Fuel consumption: 100% - 9 l/h | 75% - 7.2 l/h | 50% - 5.7 l/h
- Oil consumption: ≤2.04 g/kWh
- Average effective pressure: 1067 kPa
- Starter: 24V direct current
- Cooling system: Ambient radiator 50 ℃
- Exhaust gas temperature ≤540℃
- Model: VG184F
- Rated power: 24 kW at 1500 rpm
- Power factor: 0,8 (COS φ)
- Efficiency: 93,70%
- Insulation system: Class H
- Degree of protection: IP21
- The length of the stator: 190 mm
- Winding connection (standard): star / Y, 4 wires
- Voltage regulator: AVR SX460
- Maximum speed exceeded: 2250 rpm
- Height: ≤1000m
- Stabilized voltage regulation: ≤±1,5%
- Instant voltage regulation: ≤±20%
- Voltage recovery time: ≤1s.
- Voltage fluctuation coefficient: ≤1%
- Voltage wave aberration coefficient: ≤5%
- Frequency stabilized control: ≤1% (adjustable)
- Instant frequency adjustment: -10% ~ 12%
- Frequency oscillation coefficient: ≤1%
FAQ
The operating time of the Bullvolt PWR24 without interruption depends on the load and the amount of available fuel. However, thanks to its large fuel tank and efficiency, it can operate for 8-10 hours
The Bullvolt PWR24 runs on diesel fuel, which makes it economical and available in most countries.
Bullvolt PWR24 is equipped with a built-in overload and short circuit protection system. This ensures safe operation of the generator and prevents damage to the equipment in case of unforeseen situations.
Bullvolt PWR24 has a low noise level thanks to advanced sound insulation technology. It is designed to minimize possible interference and noise during operation.
Bullvolt PWR24 is compact and easy to use. The exact dimensions and weight may vary depending on the model, but in general, it is designed with portability and ease of movement in mind. 200 × 85 × 115 cm
To maintain optimal performance of the Bullvolt PWR24, regular maintenance is recommended, including checking the oil level, filters, and other components. The operating instructions contain detailed maintenance instructions and recommendations for the care of the generator.
Bullvolt provides a warranty for its generators, including the Bullvolt PWR24. Details of warranty coverage can be found in the warranty policy or on the official Bullvolt website.
The Bullvolt PWR24 is available from authorized Bullvolt dealers or specialized stores offering generators and electrical equipment.
The Bullvolt PWR24 can be equipped with additional features such as automatic start-up in the event of a power outage (automatic start) and a remote control system that provides ease of use and control of the generator. For details on the available options, contact the seller or manufacturer.
